  •   12 port switch HP Aruba CX 6200 R8Q72A (12x PoE+, 2x10G SFP, L3, 139W)

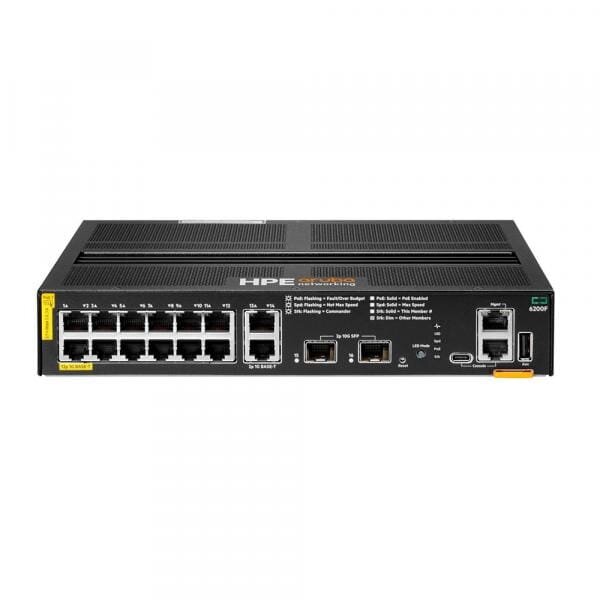

    12 port switch HP Aruba CX 6200 R8Q72A (12x PoE+, 2x10G SFP, L3, 139W)

    Inquire about this item
    Price 2016.86 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Switch TypeManaged
    • Switch LayerL3
    • RJ-45 Ethernet Ports12 x Gigabit Ethernet (10/100/1000)
    • SFP+ Ports2 x SFP+
    • Console PortRJ-45 / USB Type-C
    • Switching Capacity68 Gbps
    • Forwarding Rate45.1 Mpps
    • Latency2.28 µs (1 Gbps), 1.46 µs (10 Gbps)
    • Network StandardsIEEE 802.1AX, 802.1D, 802.1Q, 802.1ab, 802.1ak, 802.1p, 802.1s, 802.1t, 802.1v, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3x, 802.3z
    • Power over Ethernet (PoE)Yes
    • PoE Budget139 W
    • 10G SupportYes
    • Flow Control SupportYes
    • Link AggregationYes
    • Auto MDI/MDI-XYes
    • Spanning Tree ProtocolYes
    • VLAN SupportYes, up to 4094 VLANs
    • Quality of Service (QoS)Yes
    • Virtual StackingUp to 8 units
    • ProcessorARM Cortex-A72
    • Processor Frequency1200 MHz
    • Multicast SupportYes
    • Jumbo FramesSupported
    • DHCP FeaturesDHCP Server
    • Access Control List (ACL)Yes
    • IGMP SnoopingYes
    • SSH/SSL SupportYes
    • AuthenticationRADIUS, TACACS+
    • Routing ProtocolsOSPF, OSPFv2, OSPFv3, RIP-2, RIPng
    • IPv4/IPv6 FeaturesIPv4/IPv6 ACL
    • Power SupplyInternal AC power supply included
    • Input Voltage100–240 V AC
    • Input Frequency50/60 Hz
    • Power Consumption170 W
    • Rack MountingYes
    • StackableYes
    • Form Factor1U
    • Operating Temperature0°C to 45°C
    • Storage Temperature-40°C to 70°C
    • Operating Humidity5% to 95%
    • Storage Humidity5% to 95%
    • Dimensions442.5 x 325.4 x 43.9 mm
    • Weight5.09 kg
