  •   10 port switch UTEPO UTP7310S-PSD240-W (industrial)

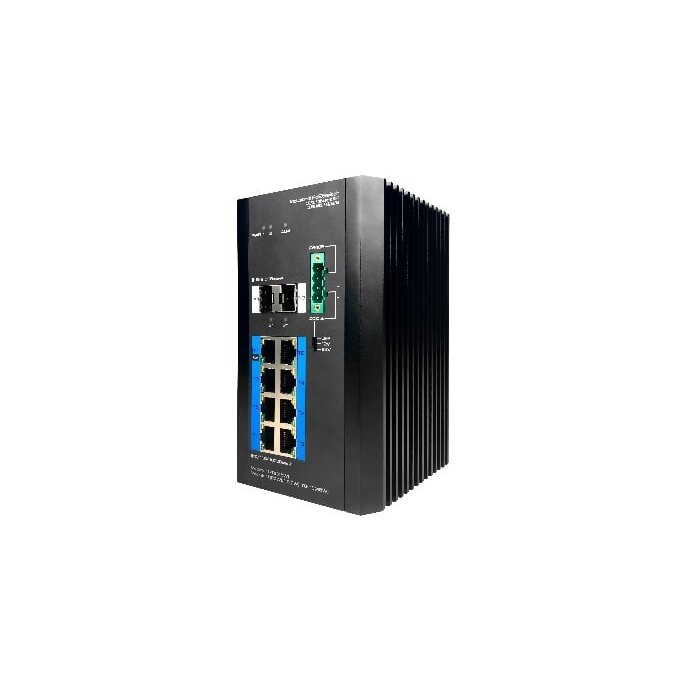

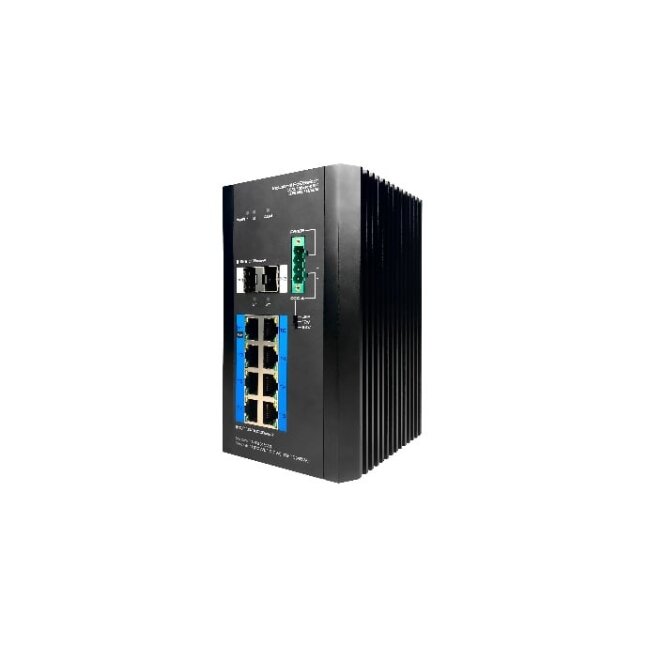

    10 port switch UTEPO UTP7310S-PSD240-W (industrial)

    Inquire about this item
    Price 239.40 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Utepo
    • General
    • Ethernet Ports8*10/100/1000BASE-T PoE RJ-45(Auto-MDI/MDI-X), 2*1G/2.5GBASE-X SFP (The default value is 1G)
    • Management Ports1*RJ-45 Console, 1*Relay
    • Serial Port1*RS-485, RS-485 signal: D+, D-, Check bit: None, Even, Odd, Space, Mark,Data bit: 5, 6, 7, 8bit, Stop bit: 1, 1.5, 2bit, Baud rate: 300~115200bps, Load capacity: RS-485 port supports,32-point polling environment (128-point could be customized),Direction control: RS-485 adopts automatic data flow control technology
    • USB PortUSB3.0
    • Auxiliary DC OutputOFF/12V/24V@2A max
    • Init ButtonShort press to restart the device, Long press >5s to initialize the system
    • LED Indicators2*PWR, power indicators, 1*ALM, alarm indicator, 2*SFP port indicators
    • Dimensions (W*D*H)163mm*110mm*95.1mm
    • Net Weight1.72kg
    • Input VoltageSupport redundant power supply, Power 1 (Main): 12~57V DC, Power 2 (Backup): 12~57V DC
    • Power Consumption≤250W (Full load including PoE & auxiliary DC)
    • InstallationDIN-rail/Desktop/Wall mounted
    • MaterialMetal shell
    • Forwarding ModesStore and Forward
    • Switching Capacity26Gbps / non-blocking
    • Packet Forwarding Rate19.344Mpps
    • MAC Table16k, support auto learning
    • Port Buffer2MB
    • Jumbo Frame9kB
    • PoE StandardIEEE 802.3af/at/bt
    • PoE Power Supply TypeEnd-span
    • PoE Pin Assignment1/2(+),3/6(-) or 3/6/4/5(+), 1/2/7/8(-)
    • PoE BudgetMode1: 45W max for each port, Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each, 240W@48V, 120W@24V, 60W@12V max for whole switch (Including auxiliary DC output)
