  •   10 port 8 PoE port switch Utepo UTP3-3310TS-PSB-L2

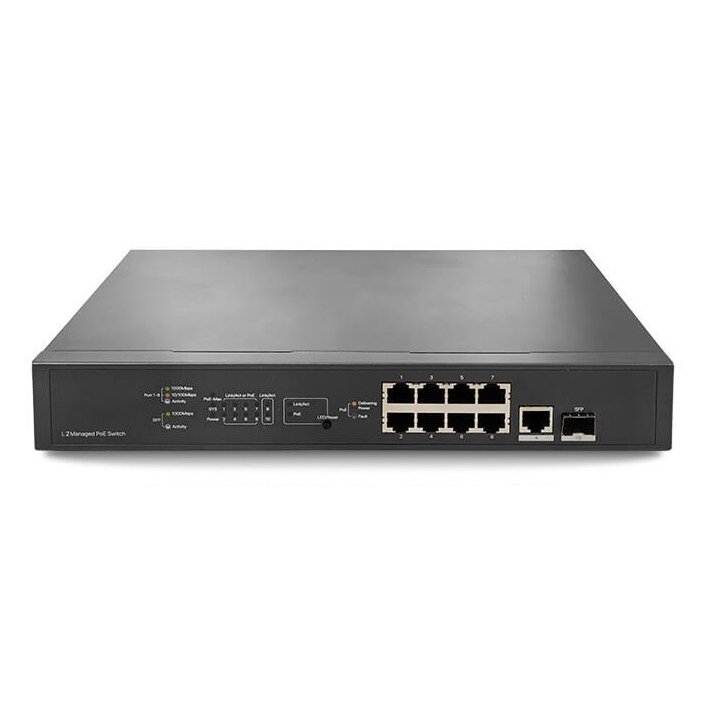

    10 port 8 PoE port switch Utepo UTP3-3310TS-PSB-L2

    Inquire about this item
    Price 147.02 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Utepo
    • General
    • ItemsUTP3310TS-PSB-L2
    • Downlink Port8*10/100/1000Base-T PoE+ RJ-45 (Auto-MDI/MDI-X)
    • Uplink Port1*10/100/1000Base-X RJ45
    • Led Indicators1*Power, power supply indicator
    • Dimensions (W*D*H)294mm*179.6mm*44mm
    • Input Voltage100~240V AC, 50~60Hz
    • MaterialMetal shell
    • InstallationRack/desktop/wall mounted
    • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s
    • Forwarding ModesStore and Forward
    • MAC Table16k, support auto learning
    • Switching Capacity20Gbps/non-blocking
    • Packet Forwarding Rate14.4Mpps
    • PoE StandardIEEE 802.3af/at
    • PoE Power Supply TypeEnd-span
    • PoE Pin Assignment1/2/4/5(+), 3/6/7/8(-)
    • PoE Budget30W max for each port, 130W max for whole switch
    • Port Lighting Protection6kV
    • Operating0℃~45℃, 10%~90% (Non-condensation)
    • Storage-40℃~70℃, 5%~90% (Non-condensation)
    • PoE managementPort PoE configuration and power supply with priority
    • SecurityARP receiving limit
    • VLANIEEE 802.1Q VLAN
    • DHCPDHCP Relay, DHCP Snooping
    • RoutingVLAN-based routing
    • LAGStatic aggregation, LACP dynamic aggregation
    • Spanning TreeIEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol),
    • MulticastIGMP Snooping V1/V2/V3
    • Port MirroringSupport N: 1 port mirroring
    • QoSSP (Strict Priority)
    • ACLSupport MAC ACL and IP ACL
    • Management and MaintenanceSupport FTP/TFTP/HTTP upgrade
    • Visualization ManagementTOPO discovery based on ONVIF
