  •   10 port 8 PoE port Switch Hikvision DS-3E1310P-SI

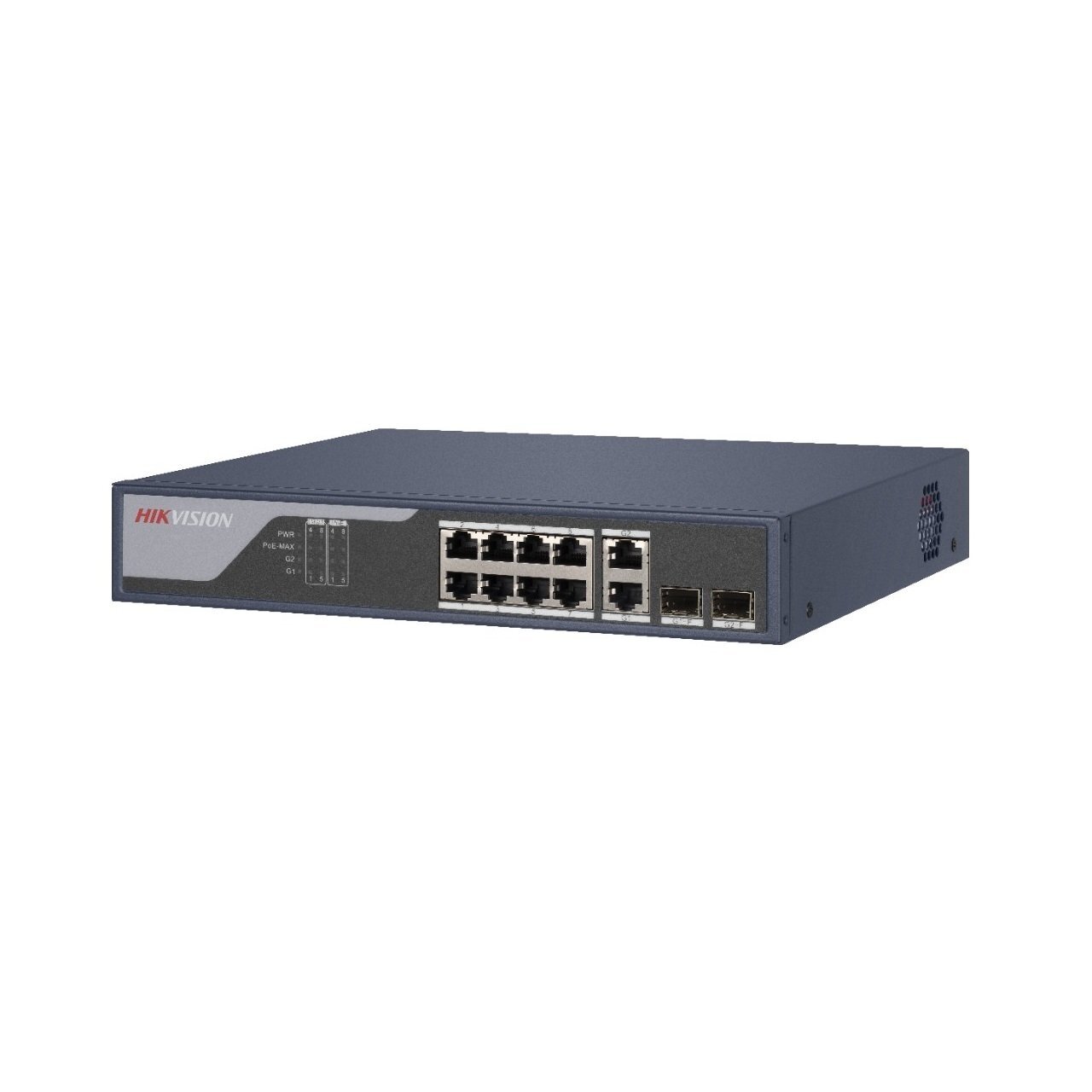

    10 port 8 PoE port Switch Hikvision DS-3E1310P-SI

    Inquire about this item
    Price 186.33 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Network Parameters
    • Port Number8 × 10/100 Mbps PoE ports, and 2 × gigabit combos
    • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    • Working Mode

      Standard mode (default)

      Extend mode

    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
    • Forwarding ModeStore-and-forward switching
    • MAC Address Table16 K
    • Internal Cache4 Mbits
    • Switching Capacity5.6 Gbps
    • Packet Forwarding Rate4.1664 Mpps
    • PoE Power Supply
    • PoE StandardIEEE 802.3af, IEEE 802.3at
    • PoE Power Pin

      End-span: 1/2(-), 3/6(+)

      Mid-span: 4/5(+), 7/8(-)

      8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

    • PoE PortPorts 1 to 8
    • Max. Port Power30W
    • PoE Power Budget125 W
    • Software Function
    • Port ConfigurationPort rate configuration, slow control, and ports enabling
    • Device MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
    • Long RangeUp to 300 m transmission
    • PoE Configuration

      PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

      PoE enabling: Support

    • Port MirroringSupport
    • QoSWRR and SP scheduling and port priority
    • VLAN4094 VLANs
    • STPSTP and RSTP protocols
    • Port IsolationPorts in isolation group cannot communicate with each other.
    • SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
    • General
    • Dimension (W × H × D)266 mm × 44.5 mm × 220.8 mm (10.47" × 1.75" × 8.69")
    • Storage Temperature-40°C to 85°C (-40°F to 185°F)
    • Gross Weight2.20 kg (4.85 lb)
    • Net Weight1.72 kg (3.79 lb)
    • Power Consumption in Idle5 W
    • ShellMetal material
    • Operating Temperature-10°C to 55°C (14°F to 131°F)
    • Operating Humidity5% to 95% (no condensation)
    • Power Supply100 VAC~240 VAC, 50/60 Hz, Max. 1.5 A
    • Max. Power Consumption150 W
    • Relative Humidity5% to 95% (no condensation)
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
    • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
