  •   1-port modem router CUDY LT700 Outdoor

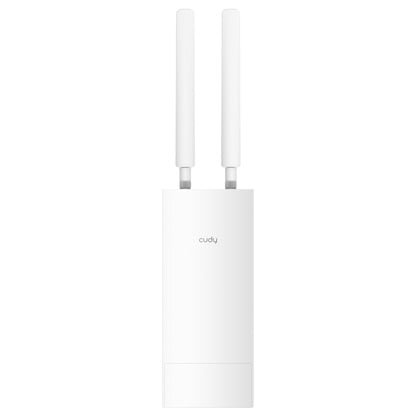

    1-port modem router CUDY LT700 Outdoor

    Inquire about this item
    Price 145.23 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionLT700 Outdoor 1.0
    • CPU ChipsetMT7621
    • CPU Details880 MHz Dual-Core, MIPS1004Kc
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM128 MB (1 Gbit) DDR3
    • Cellular Standards4G LTE Cat. 6
    • Cellular Antennas2× Detachable
    • Detachable Antenna ConnectorSMA Female
    • SIM Options1× Nano SIM Slot
    • Available VersionsEU, US
    • EU RegionEurope, Middle East, Africa, Australia, Brazil
    • EU Max DL Speed300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
    • EU Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
    • EU Advanced FeaturesDL 2CA, DL 2×2 MIMO
    • EU BandsLTE-FDD: B1/3/5/7/8/20/28/32, LTE-TDD: B38/40/41, WCDMA: B1/5/8
    • US RegionUnited States, Canada
    • US Max DL Speed300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
    • US Max UL Speed50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
    • US Advanced FeaturesDL 2CA, DL 4×4 MIMO
    • US BandsLTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71, LTE-TDD: B41/48
    • 5 GHz Wi-Fi Speed867 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Internal
    • 5 GHz Antenna Gain Max5.2 dBi
    • 2.4 GHz Antenna Gain Max4.0 dBi
    • BeamformingTrue
    • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
    • Range PerformanceMax: 170 m (558 ft), Park: 150 m (492 ft), Street: 50 m (164 ft), Woods: 30 m (98 ft)
    • Wall PerformanceNA
    • Physical ButtonsReset Button
    • Gigabit RJ45 Ports1
    • Ethernet NotesAccepts PoE powering
    • LED IndicatorsSystem, Internet, LAN, Wi-Fi, Cellular Signal Strength
    • Power InputPoE via Ethernet Port
    • Power Methods802.3at/af PoE, Passive PoE
    • Passive PoE Voltage48~57V
    • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC; Output: 48V 0.32A DC
    • EMS ProtectionIEC/EN 61000-4-2 Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5 Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
    • Operating Temperature-20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
    • Extended Temp with Industrial SIM-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity0% ~ 100% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • CertificationsFCC, CE
    • Ingress Protection RatingIP65
    • DimensionsDevice: 240×100×53.7 mm (9.45×3.94×2.11 inches), Antenna: 197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
    • Product WeightEU: 466.5 g (16.46 oz.), US: 465.9 g (16.43 oz.)
    • Installation OptionsWall-mount, Pole-mount
    • Package ContentLT700 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide
