  •   1 PoE port switch WISNET WIS-POE24-Outdoor

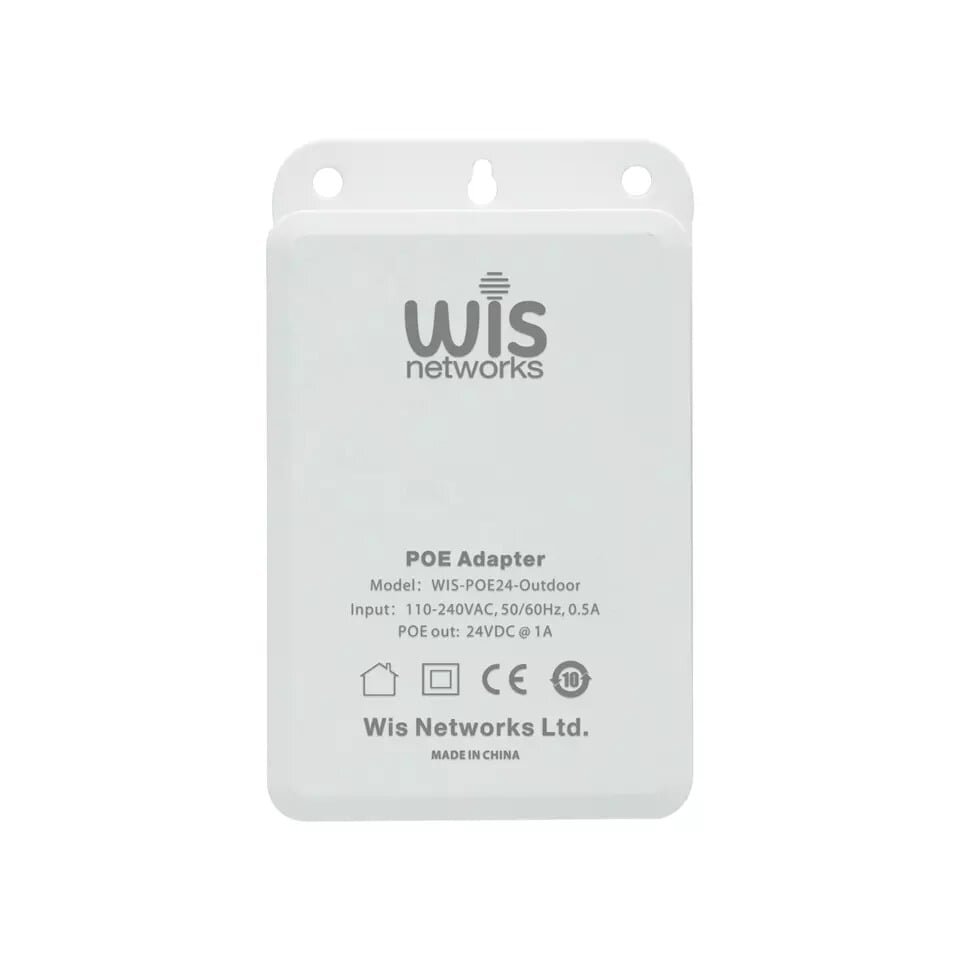

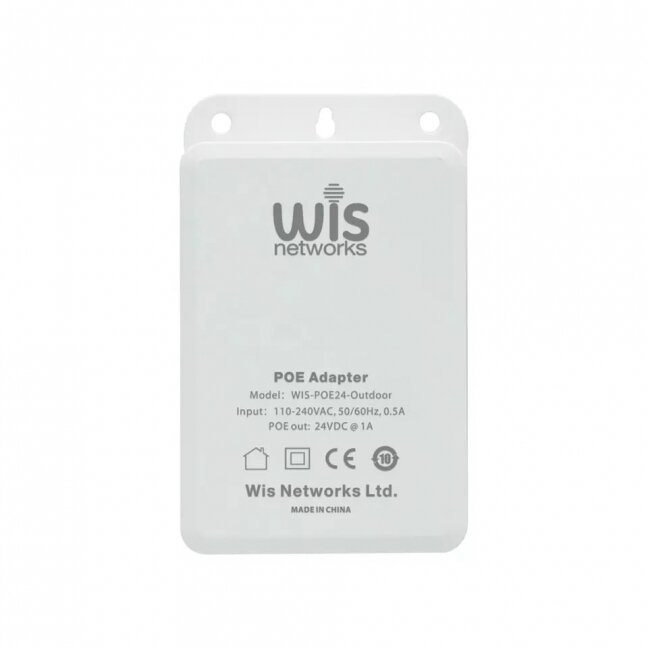

    1 PoE port switch WISNET WIS-POE24-Outdoor

    Inquire about this item
    Price 6.98 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    WIS

    • General
    • Dimensions135*80*35mm
    • Weight100g
    • Output voltage24VDC @ 1.0A
    • LAN Activity IndicatorNO
    • LAN Port10/100Mbps
    • Rated Voltage100-240VAC @ 50/60Hz
    • Input Current0.4A @ 120VAC, 0.2A @ 240VAC
    • Inrush Current60A Peak @ 120VAC, 90A Peak @ 230VAC
    • Efficiency80+%
    • Output Ripple1% Max.
    • Switching Frequency60kHz Max.
    • Line Regulation≤ 3%
    • Load Regulation≤ 3%
    • 2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-)
    • Operating Temperature0 to 40° C (32 to 104° F)
    • Storage Temperature-30 to 70° C (-22 to 158°F)
    • Operating Humidity35 to 95% Noncondensing
    • Data IN / POERJ45 Socket
    • Surge ProtectionDifference and Common Mode
    • Clamping Protection11V Data, 60V Power
    • Max. Surge Discharge1500A (8/20 µs) Power
    • Peak Pulse Current38A (10/1000 µs) Data
    • Shunt Capacitance5 pF data
    • Response Time1 ns
