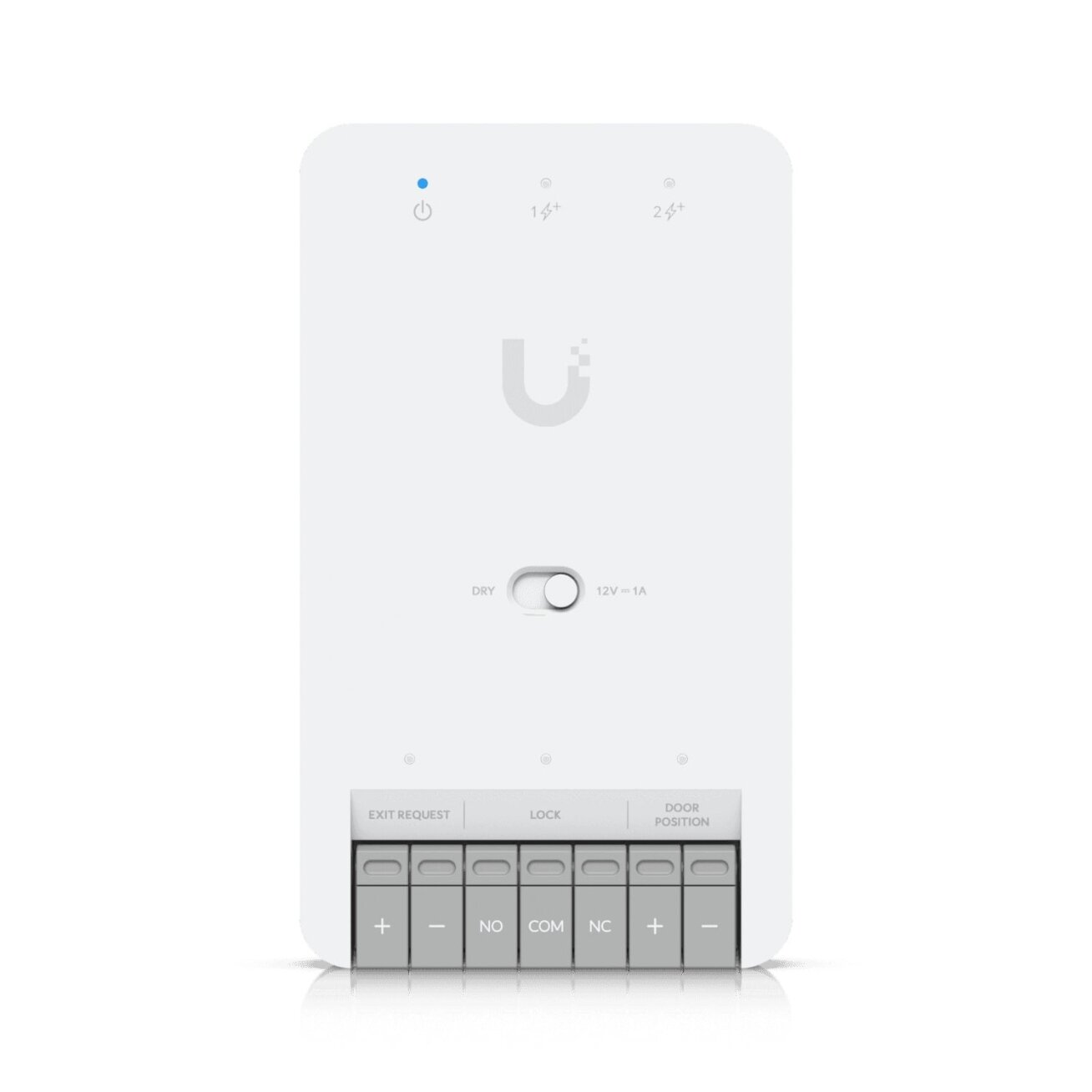

    Durų praėjimo kontroleris Ubiquiti UA-Hub-Door-Mini

    Pasiteirauti apie prekę
    Kaina 138.77 €
    Likutis: 0 vnt.
    Gamintojas
    Ubiquiti
    • Bendroji informacija
    • Matmenys113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
    • UniFi Application Suite Access✓
    • Palaikomos durys1
    • Maximum User Count3,000
    • Įvesties terminalai(1) Door exit request, (1) Door position
    • Maitinimo būdasPoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
    • Atitinka NDAA✓
    • UL 294 lygisDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
    • Svoris190 g (6.7 oz)
    • Korpuso medžiagaPolycarbonate, metal
    • MontavimasDIN-rail (Included)
    • Sausa išėjimo relė30V DC, 1A
    • Wet Output Relay12V DC, 1A
    • Vidinis ir lauko naudojimasIndoor only
    • Aplinkos darbinė temperatūra0 to 40° C (32 to 104° F)
    • Aplinkos darbinė drėgmė5 to 90% noncondensing
    • Tinklo sąsaja(3) GbE RJ45 ports
    • PoE sąsaja(1) PoE++ input, 50V DC, 1A, (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
    • Maks. energijos suvartojimas19W (Without PoE output), 50W (With PoE output)
    • LED indikatoriaiW/B Learn More
    • Mygtukai(1) Factory-reset, (1) Dry/Wet switch
    • Recommended Max. Cable Length - UA-Lock-Electric (400mA)24 AWG: 25 m (82 ft), 22 AWG: 42 m (138 ft), 20 AWG: 66 m (217 ft), 18 AWG: 100 m (328 ft)
    • Recommended Max. Cable Length - UA-Lock-Magnetic-540kg (500mA)24 AWG: 12 m (29 ft), 22 AWG: 20 m (66 ft), 20 AWG: 30 m (98 ft), 18 AWG: 46 m (262 ft)
    • Recommended Max. Cable Length - UA-Lock-Magnetic-270kg (800mA)24 AWG: 12 m (29 ft), 22 AWG: 20 m (98 ft), 20 AWG: 30 m (167 ft), 18 AWG: 46 m (151 ft)
    • Recommended Max. Cable Length - Other locks (1A)24 AWG: 9 m (30 ft), 22 AWG: 15 m (49 ft), 20 AWG: 24 m (79 ft), 18 AWG: 36 m (118 ft)
    • PoE kabelių reikalavimaiMinimum: Cat 5e, Patch cords: ≥26 AWG (0.13 mm²), Horizontal/Riser: ≥24 AWG (0.21 mm²)
    • UL 294 pareiškimasCompliance with IEEE 802.3 not verified; compliant with ANSI/NFPA 70, Article 725.121
    • CAN/ULC-60839-11-1 klasėGrade I
    • SertifikataiCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    • Document NumberUA-Hub-Door-Mini, V01
