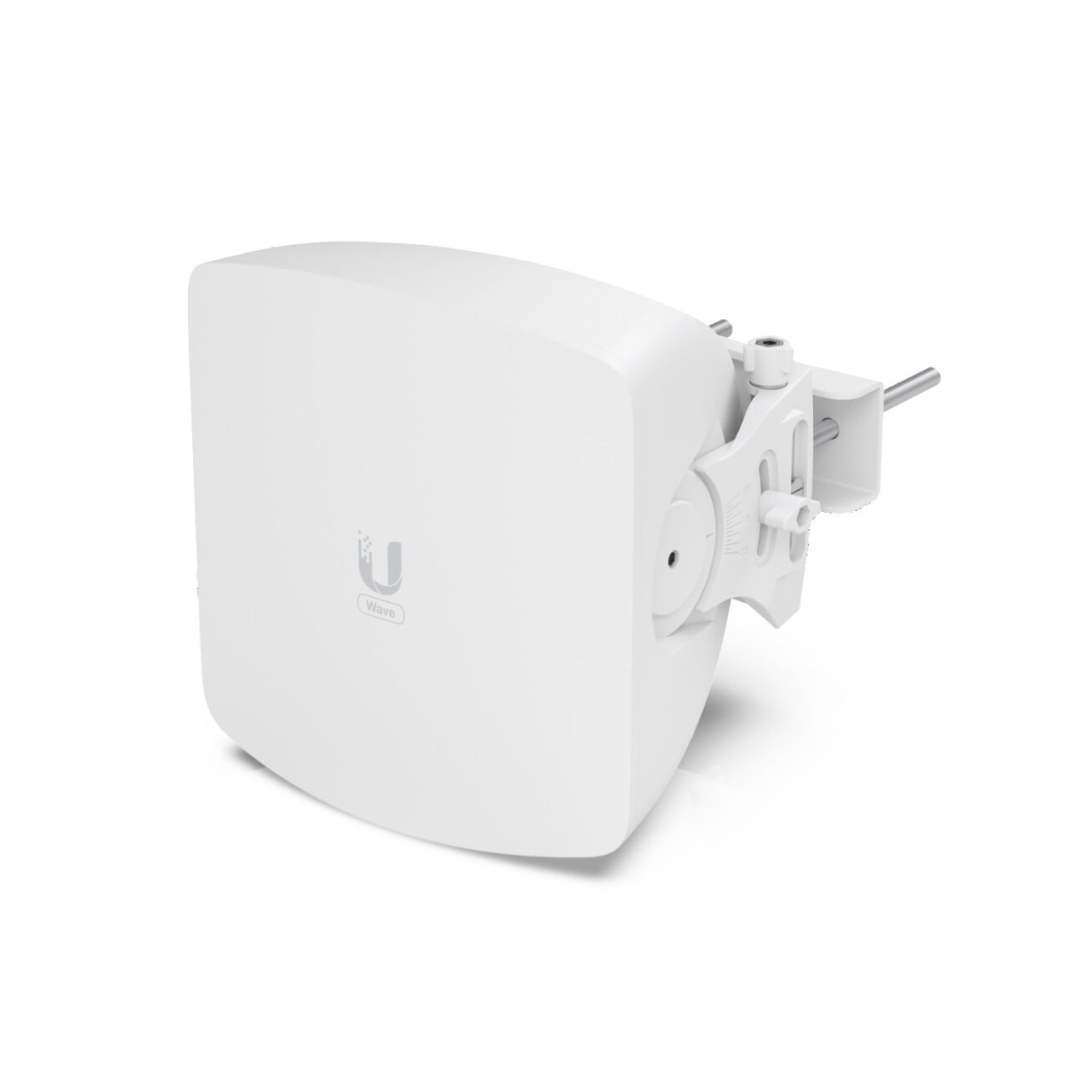

    Belaidis LAN perdavimo įrenginys Ubiquiti Wave-AP

    Pasiteirauti apie prekę
    Kaina 767.18 €
    Likutis: 0 vnt.
    Gamintojas
    Ubiquiti
    • Mechanika
    • Matmenys212 x 205 x 187 mm (8.3 x 8.1 x 7.4")
    • Svoris2.3 kg (5.1 lb)
    • Dėklo / korpuso medžiagaAluminum alloy, UV stabilized polycarbonate
    • Stulpo tvirtinimo skersmuo⌀ 25 to 76 mm (1 to 3")
    • Vėjo apkrova98 N at 200 km/h (22 lbf at 125 mph)
    • Atsparumas oro sąlygoms / lauko sąlygomsIPX6
    • Aparatūra
    • ProcesoriusQuad-core ARM® Cortex®-A53 at 1.4 GHz
    • Atmintis512 MB
    • Tinklo sąsaja(1) 2.5GbE RJ45 port (100/1000/2500) (1) 10G SFP+ port (1/10)
    • Maks. energijos suvartojimas24W
    • Maitinimo būdasPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    • Palaikomas įtampos diapazonas44–54V DC 22–27V DC
    • Maitinimo šaltinis48V DC, 0.65A 2.5GbE PoE adapter (Included)
    • GPS✓
    • Mygtukai(1) Factory reset
    • MaitinimasFlashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
    • EthernetFlashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected
    • GPSBlue: receiving at least (4) GPS satellite signal
    • Aplinkos darbinė temperatūra-40 to 60° C (-40 to 140° F)
    • Aplinkos veikimo drėgmė5 to 95% noncondensing
    • Atitinka NDAA✓
    • SertifikataiFCC, IC, CE
    • Software
    • Darbo režimaiPtMP access point
    • Discovery Protocol✓
    • UISP✓
    • Ping Watchdog✓
    • NTP Client✓
    • SNMP✓
    • Kabelio testas✓
    • Wave AI✓
    • Wave Technology✓
    • Antenna Alignment✓
    • Ping✓
    • Site Survey✓
    • Speed Test✓
    • Traceroute✓
    • Discovery Utility✓
    • TinklasTiltinis režimas
    • UISPVersion 1.5.7 and later
    • Sistema
    • Bendras pralaidumas5.4 Gbps
    • Supported Clients31
    • Max. RangeConnecting to a Wave Pro: up to 8 km (5 mi) Connecting to a Wave Long-Range: up to 8 km (5 mi) Connecting to a Wave Nano: up to 5 km (3.1 mi) Connecting to a Wave Pico: up to 1.3 km (0.8 mi)
    • ŠifravimasWPA2-PSK (AES)
    • Radijo dažnis
    • Worldwide57–71 GHz
    • Kanalų pralaidumas2160, 1080, 540 MHz
    • Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
    • Moduliacija16QAM, QPSK
    • Antenos stiprinimas24 dBi
    • PoliarizacijaVertically-Linear
    • Spindulio plotisAzimuth: 3 dB 30° Elevation: 3 dB 3°
    • Electrical Downtilt0°
    • Radio Frequency (Back-Up)
    • WiFi standartas802.11ax (WiFi 6)
    • US/CAU-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
    • Worldwide5150 - 5875 MHz
    • Kanalų pralaidumas20, 40, 80 MHz
    • ModuliacijaBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
    • Antenos stiprinimas12 dBi
    • PoliarizacijaDual-Linear
    • Spindulio plotisAzimuth: 3 dB 35° Elevation: 3 dB 60°
    • Kryžminė poliariškumo izoliacija10 dB
    • Electrical Downtilt0°
