Prekių katalogas

Pradžia/Tinklų įranga ir WiFi/Komutavimo įranga/Maršrutizatoriai
  •   Belaidis LAN maršrutizatorius Teltonika OTD144

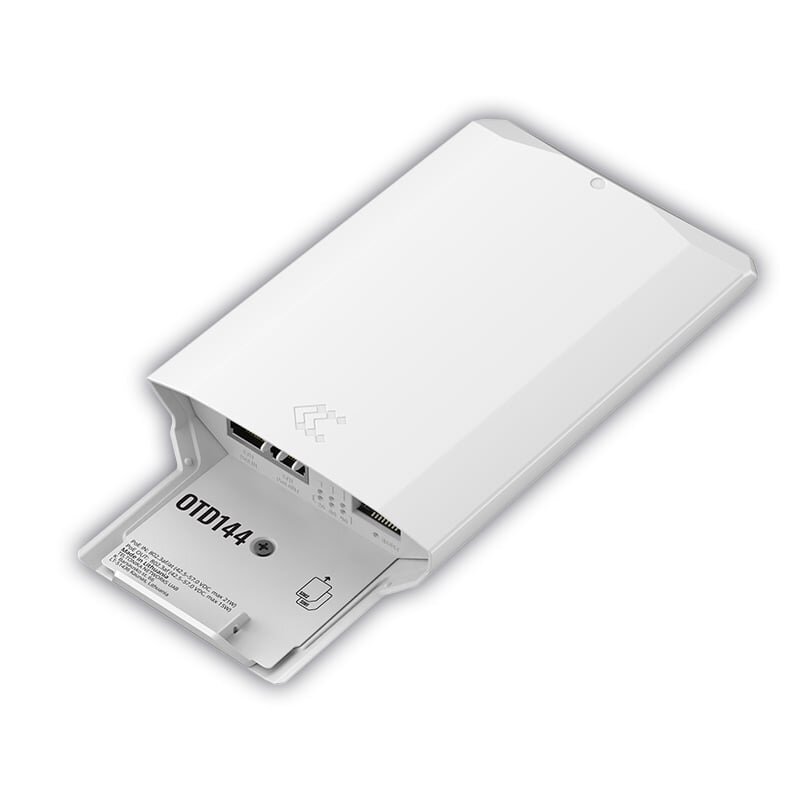

    Belaidis LAN maršrutizatorius Teltonika OTD144

    Pasiteirauti apie prekę
    Kaina 162.05 €
    Šią prekę turime sandėlyje.
    CENTRINIS SANDĖLIS
    Likutis: 5 vnt.
    • Bendra
    • Mobile Module4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
    • 3GPP versijaRelease 9
    • SIM Switch2 SIM cards, auto-switch on weak signal, data/SMS limit, roaming, no network, network denied, connection fail, SIM idle protection
    • Status ParametersIMSI, ICCID, operator details, signal strength (RSSI, SINR, RSRP, RSRQ), connection state, data stats, LAC, TAC, Cell ID, bands, etc.
    • SMSSupport for status, config, Email ↔ SMS, scheduled SMS, autoreply, HTTP gateway, SMPP
    • USSD SupportSupports sending and reading USSD messages
    • Block/Allow ListOperator block/allow list (country/operator-based)
    • Band ManagementBand lock and used band status display
    • SIM PIN ManagementSet, change, or disable SIM PIN
    • APNAuto APN
    • Bridge ModeDirect connection between mobile ISP and LAN device
    • PerleidimasMobile WAN IP assignment to LAN device
    • Belaidžio ryšio režimas802.11b/g/n (Wi-Fi 4), AP, STA
    • „Wi-Fi“ saugumasWPA2-Enterprise, WPA2-PSK, WPA3, OWE, TKIP, AES, EAP-TLS, 802.11w, MAC-based control
    • SSID/ESSID OptionsSSID stealth, MAC access control
    • Wi-Fi User LimitUp to 100 simultaneous users
    • Belaidžio ryšio privalumaiMesh (802.11s), Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS management (802.11v), client isolation, WMM
    • Wireless MAC FilterAllowlist, Blocklist
    • Wireless QR CodeAuto-join by scanning QR
    • TravelMateForwards hotspot landing page to next connected device
    • LAN2 x 10/100 Mbps ETH ports (configurable as WAN), IEEE 802.3/3u/3az, auto MDI/MDIX
    • Maršruto parinkimasStatic, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
    • Tinklo protokolaiTCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, ARP, VRRP, PPP(oE), UPNP, SSH, Telnet, SNMP, MQTT, WOL, VXLAN
    • VoIP PassthroughH.323 and SIP-ALG NAT helpers
    • Connection MonitoringPing/Wget/LCP/ICMP-based reboot & link check
    • Firewall FeaturesPort forwarding, traffic rules, TTL customization, custom rules
    • Firewall Status PageView rules, stats, counters
    • Prievadų valdymasView, enable/disable, auto-config, speed control
    • Network TopologyVisual network map
    • DHCP SupportStatic/dynamic IP, relay, leases with MAC wildcards
    • QoS / SQMTraffic priority by source, protocol, service, WMM, 802.11e
    • DDNS>77 providers supported, manual config possible
    • DNS per HTTPSSecure DNS resolution via DoH proxy
    • Network BackupVRRP, Wired failover options
    • Viešosios interneto prieigos taškasCaptive portal, Radius, SMS/SSO auth, themes, walled garden, URL params, group/user mgmt
    • SSHFSRemote file system mount over SSH
    • Eismo valdymasReal-time monitoring, usage history, signal charts
    • AutentifikavimasPre-shared key, X.509 certs, TACACS+, RADIUS (internal/external), IP/login blocking, time-based login block
    • Firewall ConfigPreconfigured via WebUI, CLI custom firewall, DMZ, NAT, NAT64
    • Attack PreventionDDOS (SYN flood, SSH, HTTP attacks), port scan detection (SYN-FIN, X-mas, NULL, etc.)
    • VLANPort/tag-based VLAN
    • Mobile Quota ControlData limit, period/start time, warning, phone number tracking
    • WEB FilterBlock list & allow list for content control
    • Access ControlFlexible access to SSH, Web, CLI, Telnet
    • Certificate ManagerCreate CA/server/client certs, Let’s Encrypt, SCEP support
    • 802.1x SupportPort-based network access control
    • OpenVPNMultiple clients & server support, 27 encryption methods
    • OpenVPN šifravimasAll standard AES, DES, RC2, BF, CAST5, GCM, CFB, OFB, etc.
    • IPsecXFRM, IKEv1/v2, 14 encryption modes incl. AES-GCM, DES, 3DES
    • GREGRE tunnel & GRE over IPsec support
    • PPTP/L2TPClient/server, L2TPv3, L2TP over IPsec
    • StunnelAdd TLS to any app without code change
    • DMVPNSupports Phases 2/3, dual hub
    • SSTPClient instance support
    • ZeroTierClient support
    • WireGuardClient and server support
    • TincTunneling with encryption, auth, compression
    • OPC UAClient and Server, TCP support
    • Modbus MQTT GatewayMQTT <-> Modbus (read/write data via broker)
    • MODBUS ModesClient, Server
    • MODBUS TCPCustom register read/write to local files, extend functionality
    • MODBUS FormatsINT, UINT (8/16/32-bit), HEX, ASCII, float, byte order variants
    • Data to Server ProtocolsHTTP(S), MQTT, Azure MQTT
    • Data to Server CapabilitiesExtract from multiple sources/protocols, send to one server, support LUA scripting
    • DNP3 ModesStation, Outstation
    • DNP3 ConnectionTCP
    • DLMS/COSEM ModeClient
    • DLMS ConnectionTCP
    • API SupportTeltonika Web API (beta), configurable endpoints
    • Web UIHTTP(S), FW updates, status, event logs, CLI, troubleshooting
    • FOTAFirmware update from server, auto notifications
    • SSH SupportSSH v1/v2
    • El. pašto įspėjimaiStatus alerts for services
    • SMS ControlStatus, config
    • Call FunctionsReboot, data toggle, output control, call timer
    • TR-069 CompatibilityOpenACS, GenieACS, AVSystem, etc.
    • MQTTMQTT broker & publisher
    • SNMP Supportv1/v2/v3, trap, brute force protection
    • JSON-RPCAPI over HTTP(S)
    • RMSTeltonika Remote Management System
    • ThingWorx MonitoringWAN, IP, operator name/type/signal
    • Cumulocity MonitoringModel, firmware, SIM info, cell ID, reboot/firmware action
    • Azure IoT HubParameter sync, direct method API, zero-touch provisioning
    • AWS IoT CoreJobs-based API control, cloud interaction
    • ProcesoriusMediatek 580 MHz, MIPS 24KEc
    • RAM128 MB
    • FLASH Storage16 MB
    • Firmware Update MethodsWeb UI, FOTA, RMS
    • Keep SettingsFW update without losing configuration
    • Gamyklinis atstatymasRestore to manufacturer defaults
    • Firmware CustomizationRutOS (OpenWRT), branding, UI/logo customization
    • Palaikomos kalbosBash, Lua, C/C++, Python, Java (via package)
    • SDKSDK build environment provided
    • Package ManagerInstall additional software
    • PoE In1 x PoE In, 802.3af/at
    • PoE išvestis1 x PoE Out, 802.3af Alternative B, Max 15 W
    • Maitinimo jungtisRJ45 Socket
    • Įvesties įtampos diapazonas42.5–57.0 VDC, surge and polarity protection
    • Energijos suvartojimasIdle < 2.5 W; Max < 6 W; PoE Max < 21 W
    • Ethernet Interfaces2 x RJ45, 10/100 Mbps
    • Būsenos LED indikatoriai3 x Mobile type, 3 x signal strength, 4 x ETH status
    • SIM Slots2 x Mini SIM (2FF), 1.8/3 V
    • Antenos2 x Internal
    • Antenna Specs2 x 698-960/1710-2690 MHz, 50 Ω, VSWR < 3, gain < 4.5 dBi
    • Reset OptionsReboot, user default, full factory reset
    • Korpuso medžiagaPlastic (PC+ASA)
    • Matmenys110 x 49.30 x 235 mm
    • Svoris315 g
    • Tvirtinimo parinktysBracket for wall or pole
    • Darbinė temperatūra-40 °C to 75 °C
    • Darbo drėgmė10% to 90% non-condensing
    • IP klasėIP55
    • ReguliavimasCE, UKCA, CB, RCM, WEEE, EAC, UCRF
