  •   24 prievadų komutatorius Cudy GS1028EPS2 (24x 1G PoE, 2x 1G SFP)

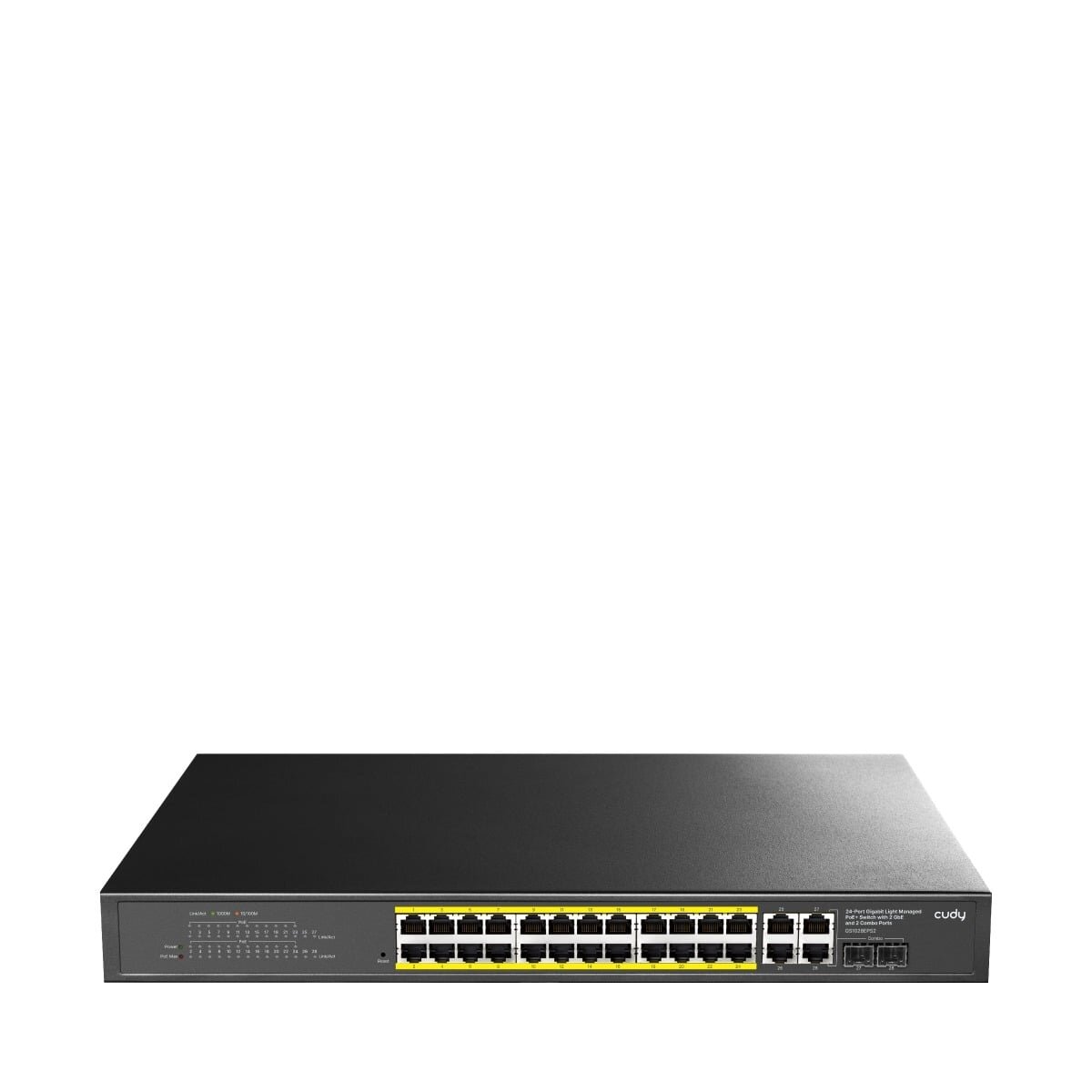

    24 prievadų komutatorius Cudy GS1028EPS2 (24x 1G PoE, 2x 1G SFP)

    Pasiteirauti apie prekę
    Kaina 290.04 €
    Šią prekę turime sandėlyje.
    CENTRINIS SANDĖLIS
    Šiaulių Sandėlis
    Likutis: 5 vnt.
    • Bendra informacija
    • Modelio versijaGS1028EPS2 1.0
    • Flash/ROM16 MB (128 Mbit) NOR
    • Gigabit RJ45/SFP Combo Ports2
    • Gigabit RJ45 Ports26
    • Gigabit RJ45 PoE prievadai#1~#24
    • Didžiausia galia viename PoE portuose30W
    • PoE porto pastabosPoE ports support 802.3at/af standards.
    • PoE PriorityConfigurable. If no priority is configured, smaller-numbered ports have higher priority.
    • Išplėstinio režimo prievadaiConfigurable
    • VLAN režimo prievadaiConfigurable
    • LEDPower, PoE Status of Each PoE Port, Link/ACT of Each Ethernet Port, PoE Max Status
    • Fiziniai mygtukaiReset Button
    • Max Copper Speed and DistanceCat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at Gigabit, Cat. 5e or higher cable: 250 meters at 10 Mbps
    • Varinės greičio ir atstumo pastabos250-meter transmission is available when the port speed is set at 10 Mbps in the software.
    • Optical Spec and DistanceDepends on the Installed Optical Module
    • MAC adresų lentelė8192
    • VLANs4096
    • Maksimali komutavimo talpa56 Gbps
    • Maksimalus persiuntimo greitis41.664 Mpps
    • Dideli kadrai15 KB
    • Paketų buferis4 Mbit
    • Power Input TypeAC Inlet
    • Maitinimo metodaiAC
    • Maitinimo įėjimas100-240V~ 50/60Hz
    • Maitinimo šaltinis300W
    • Didžiausia galia neįtraukiant PoE20W
    • 802.3 Protocols802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3az Power Saving, 802.3af PoE, 802.3at PoE
    • 802.1 Protocols802.1p: LAN Layer 2 QoS/CoS, 802.1q: VLAN Bridge Operation, 802.1ab: LLDP/LLDP-MED
    • Prievadų valdymasPort On/Off, Port Negotiation Speed, Port Trunk (Static Aggregation), Port Mirror, Data Rate Limit, Jumbo Frame Settings, Storm Control, Traffic Monitor, MAC Address Management, EEE (802.3az)
    • PoE valdymasPoE Priority, PoE Watchdog On/Off, PoE Watchdog Period/Packet Threshold, PoE Consumed Power, PoE Standard, Delayed PoE Delivery, Total PoE Power Limit, PoE Power Limit
    • Port Mirror Sessions4
    • Port Trunk Groups4
    • Max Port Num per Port Trunk Group8
    • 2 lygio (L2) ypatybėsIGMP Snooping, Loop Prevention, DHCP Snooping, LLDP Config and Neighbors, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS
    • Fans1
    • Fan NoteSmart Cooling: The fan speed adjusts in real time based on power consumption.
    • Grounding MethodsThree-Prong Plug
    • Elektromagnetinis suderinamumasIEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
    • AplinkosaugaOperating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70 ℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
    • Control MethodsConfig Web Page, SNMP V1/V2, Cudy App
    • Programinės įrangos atnaujinimasLocal Upgrade
    • PatikimumasBackup and Restore
    • Diagnostikos įrankiaiCable Status/Length Diagnosis, Ping
    • LanguagesEnglish, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
    • Matmenys440×220×44 mm (17.32×8.66×1.73 inches)
    • Gaminio svoris2941.2 g (103.75 oz.)
    • Korpuso medžiagaMetal
    • MontavimasDesktop, Rackmount via Brackets
    • Pakuotės turinysGS1028EPS2, Power Cord, Mounting Kit, Installation Guide
